| ブランド名: | BM |
| モデル番号: | YL90L-4 |
| MOQ: | 10個 |
| 価格: | USD35-USD120 |
| パッケージの詳細: | カートン/パレット |
| 支払条件: | T/T |

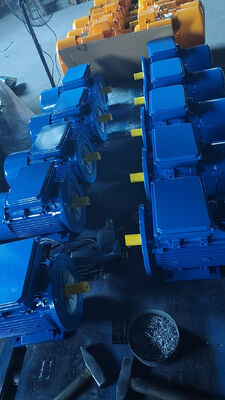

YL90L-4 Industrial up Down 2Hp 1400Rpm Mono phase Single Phase Asynchronous Electric Motors Ac Motor
1, Dual capacitor (start capacitor + run capacitor), strong starting torque;
2, Full copper winding, stable performance, low noise & vibration;
3, Cast iron housing, good heat dissipation, long service life;
4, Foot mounting (B3), easy installation and maintenance.
| Franme reference and size |
Rated power |
Full load sreed in revolutions per minute |
Full load current at rated voltage |
Exciter Voltage |
Efficiency | Power factor |
Direct on ine starting torque ratio |
Direct on linepull out torque ratio |
Diect on line starting current ratio |
Mean sound pressure level@1mon noload |
Start Capacitor |
Running Capacitor |
Weight |
| Type | Output (KW) |
Speed (r/min) |
Amps (A) |
Voltage (V) |
EFF. (%) |
P.F. Cos |
LRT RLT |
BDT RLT |
LRA RLA |
Noise LwdB(A) |
(uf/v) | (uf/v) | Weight (kg) |
| YL711-2 | 0.37 | 2800 | 2.7 | 220 | 67 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 50/250 | 8/450 | 10 |
| YL712-2 | 0.55 | 2800 | 3.9 | 220 | 70 | 0.92 | 1.8 | 1.6 | 5.5 | 72 | 100/250 | 15/450 | 11 |
| YL711-4 | 0.25 | 1400 | 2.0 | 220 | 62 | 0.92 | 1,7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 9 |
| YL712-4 | 0.37 | 1400 | 2.8 | 220 | 65 | 0.92 | 1.7 | 1.6 | 5.0 | 67 | 75/250 | 15/450 | 10 |
| YL801-2 | 0.75 | 2800 | 4.9 | 220 | 73 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 25/450 | 14 |
| YL802-2 | 1.1 | 2800 | 7.0 | 220 | 75 | 0.95 | 1.8 | 1.6 | 5.5 | 75 | 100/250 | 30/450 | 15 |
| YL801-4 | 0.55 | 1400 | 3.95 | 220 | 69 | 0.92 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 15/450 | 13 |
| YL802-4 | 0.75 | 1400 | 5.05 | 220 | 71 | 0.95 | 1.7 | 1.6 | 5.0 | 70 | 100/250 | 25/450 | 14 |
| YL90L1-2 | 1.5 | 2800 | 9.4 | 220 | 76 | 0.95 | 1.8 | 1.6 | 5.5 | 78 | 200/250 | 40/450 | 22 |
| YL90L-2 | 2.2 | 2800 | 13.7 | 220 | 77 | 0.95 | 1.7 | 1.6 | 5.5 | 78 | 300/250 | 50/450 | 24 |
| YL90L1-4 | 1.1 | 1400 | 7.3 | 220 | 72 | 0,95 | 1.7 | 1.6 | 5.0 | 73 | 150/250 | 30/450 | 21 |
| YL90L-4 | 1.5 | 1400 | 9.7 | 220 | 74 | 0.95 | 1.7 | 1.6 | 5.0 | 73 | 200/250 | 40/450 | 23 |
| YL100L-2 | 3 | 2800 | 18.2 | 220 | 79 | 0.95 | 1.7 | 1.6 | 6.0 | 83 | 350/250 | 55/450 | 24 |
| YL100L1-4 | 2,2 | 1400 | 13,9 | 220 | 76 | 0.95 | 1,7 | 1.6 | 5.0 | 78 | 300/250 | 50/450 | 32 |
| YL100L2-4 | 3 | 1400 | 18,4 | 220 | 78 | 0.95 | 1.7 | 1.6 | 5.0 | 78 | 350/250 | 55/450 | 33 |
| YL112M-2 | 3,7 | 2800 | 22,1 | 220 | 80 | 0.95 | 1,7 | 1,6 | 6.0 | 83 | 350/250 | 60/450 | 46 |
| YL112M-4 | 3.7 | 1400 | 22.4 | 220 | 79 | 0.95 | 1.7 | 1.6 | 5.5 | 83 | 350/250 | 60/450 | 44 |
|
|
